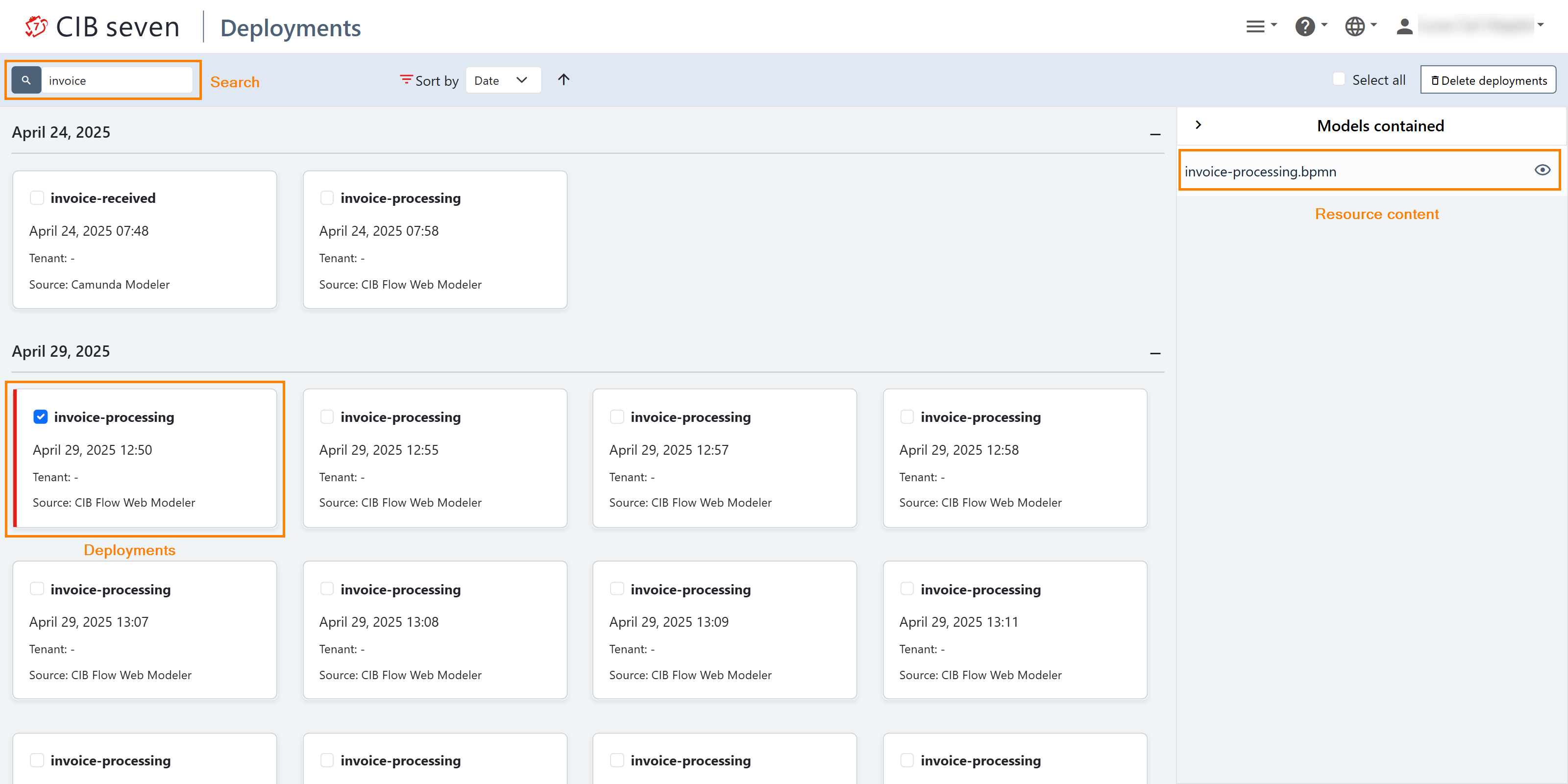

The deployment view of Cockpit shows an overview of all deployments, their resources and the content of these resources. It allows the deletion of existing deployments as well as redeployment of old resources and the creation of new deployments. The content of resources within deployments can be displayed. It is also possible to download single resources from this view.

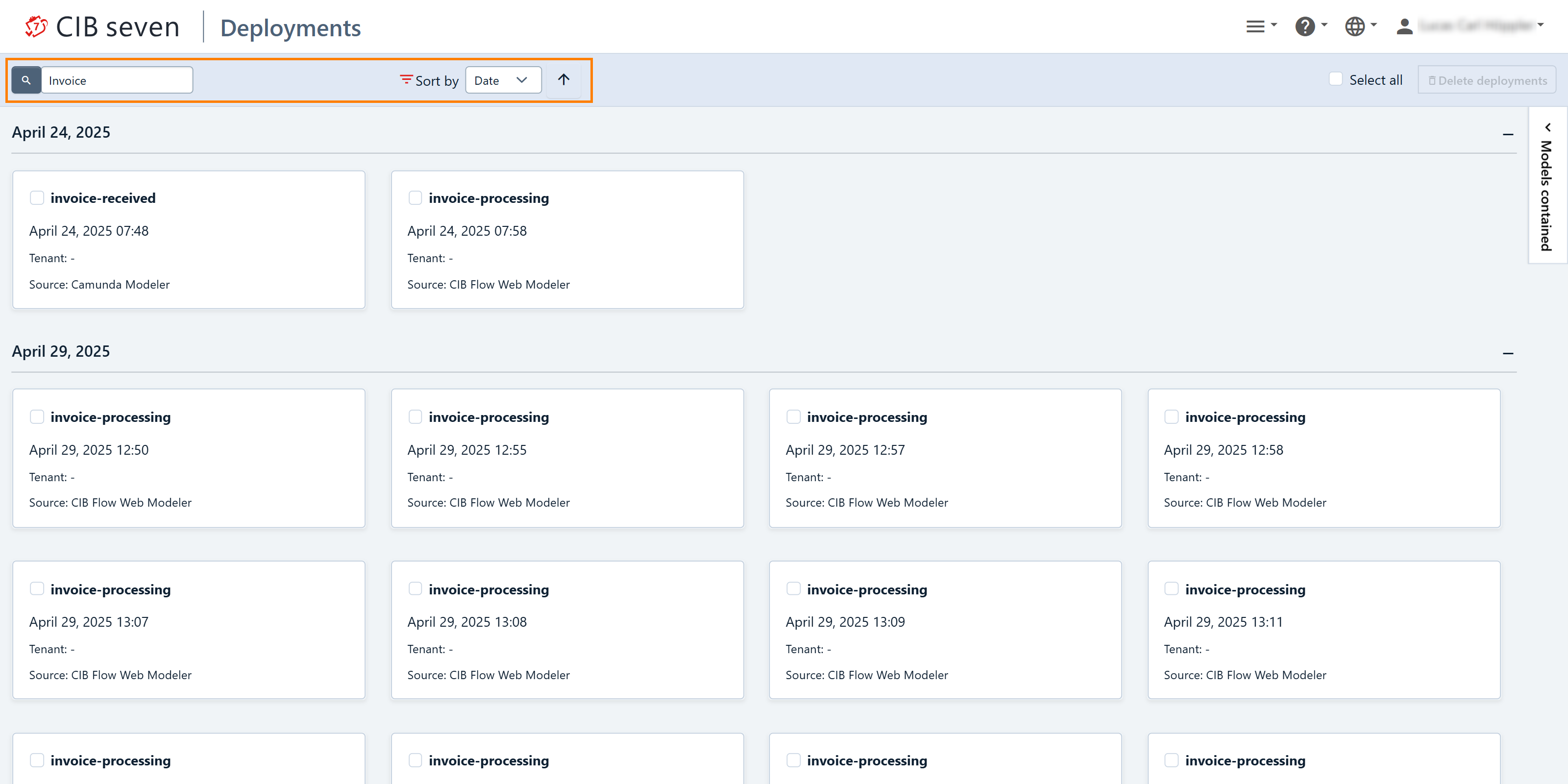

Search and Sort

Use the search field at the top of the deployment list to find specific deployments. You can search using the unique deployment ID, and partial name matches are also supported.

Independently of the search, ordering for the deployment list can be set using the sorting parameter above the search field. It is possible to order by deployment date or name. Clicking on the arrow on the right side of the sorting criterion changes the ordering (ascending and descending).

Delete

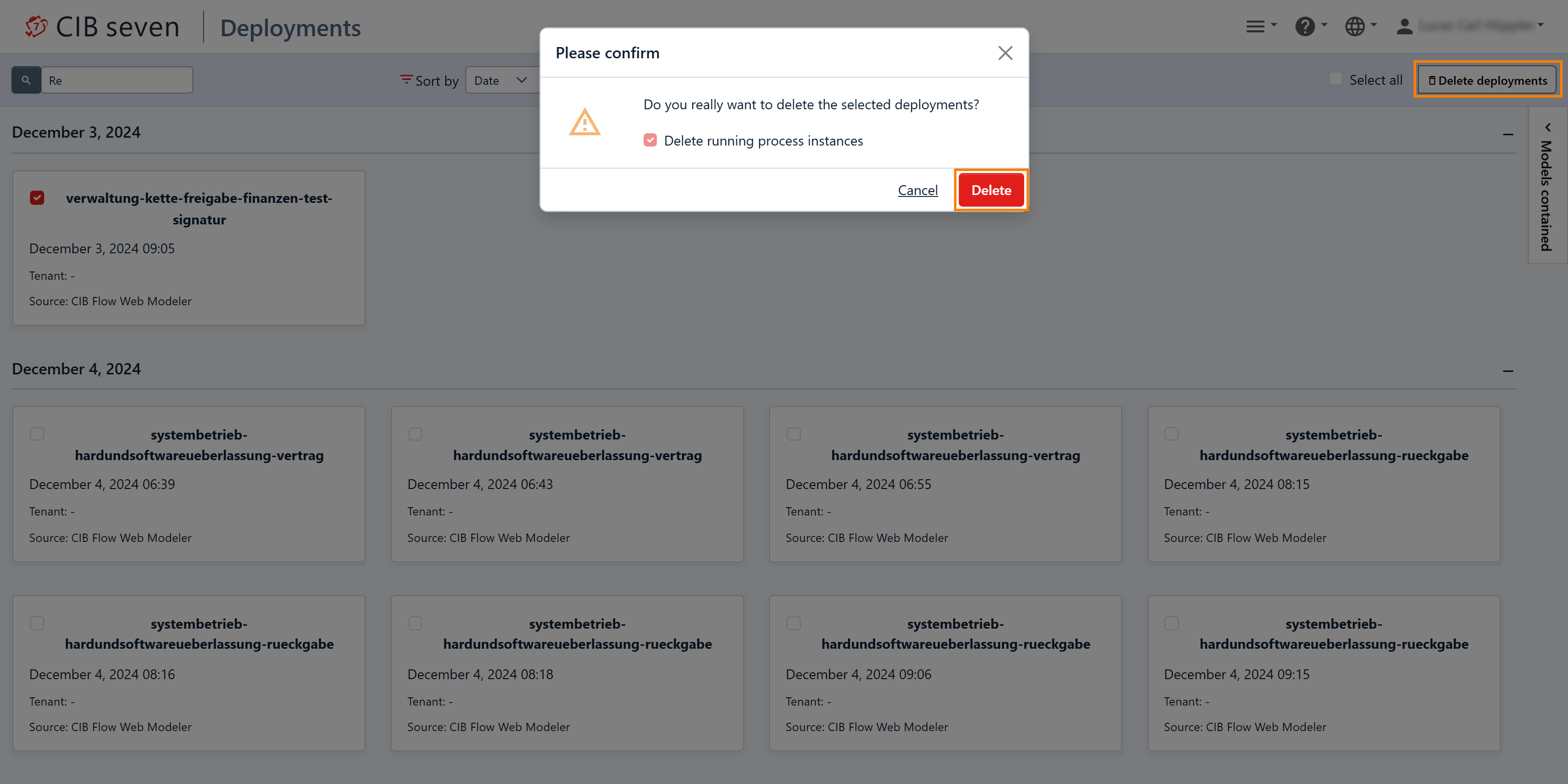

To delete a deployment, select the deployment and click the ‘Delete deployments’ button. A confirmation dialog will appear, notifying you that any running instances will also be deleted. The button is highlighted in orange in the screenshot below.

You also can select multiple deployments or even all deployments and delete them.

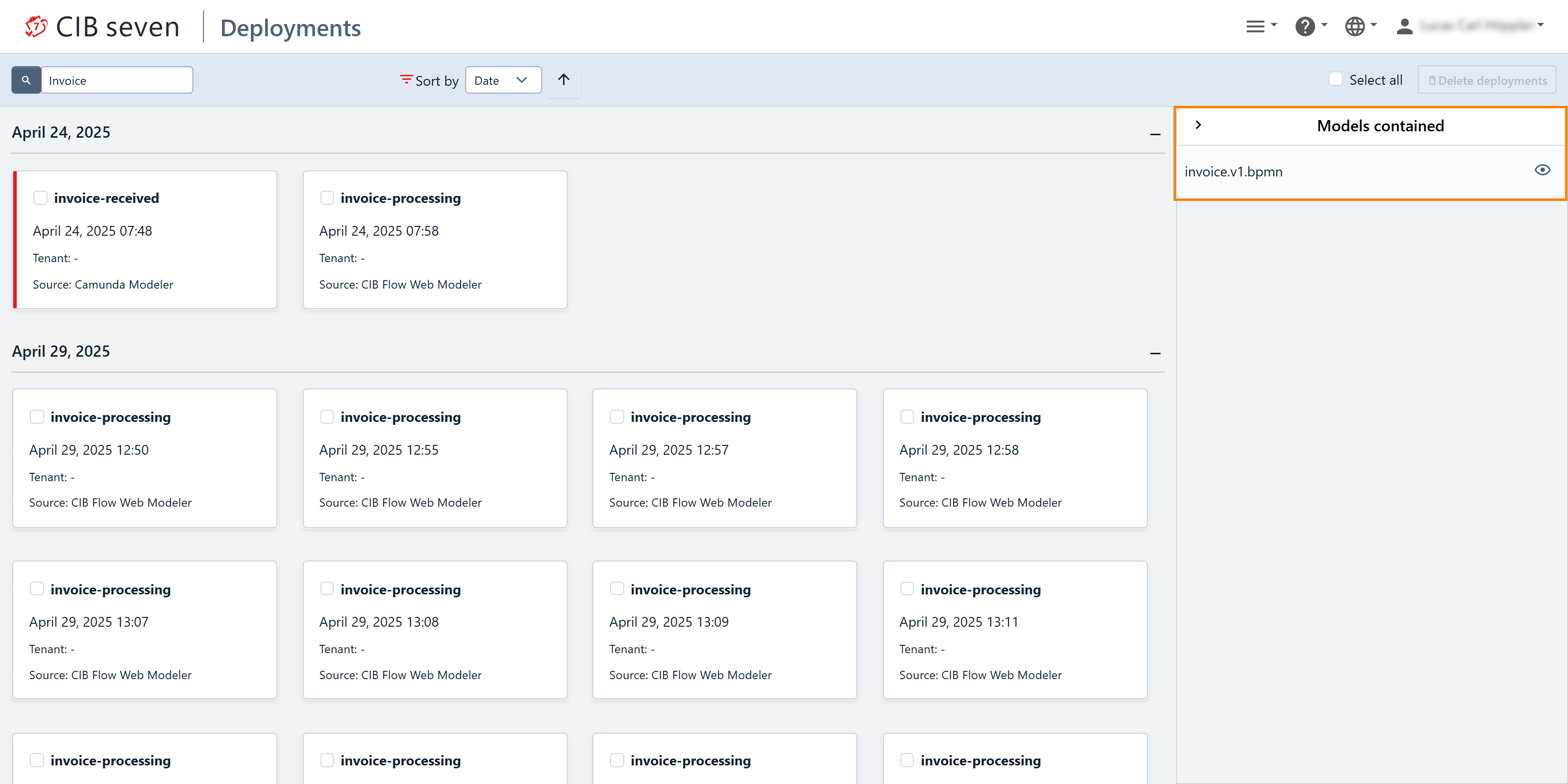

Definition Resources

For resources that contain definitions (BPMN, DMN and CMMN files), a preview of the diagram or the table is displayed when clicking on the eye symbol on the right side of the page.
